COMMERCIAL DUMBWAITERS
Matot Dumbwaiters & Material Lifts
When two industry leaders get together, expect great things!
Savaria acquired the Matot line of dumbwaiters, material lifts and vertical reciprocating conveyors (VRCs) in 2024.
Founded in 1888, Matot dumbwaiters and material lifts are used in a wide range of activities, including hospital and healthcare facilities, the hospitality sector, and a variety of retail and industrial settings.
Technology benefits:
-
Make the best use of most expensive commercial space—back-of-house operations and storage go downstairs
-
Efficient delivery of materials reduces congestion and accidents, frees up human resources for more productive tasks
-
Safe, efficient and sequestered transport of sterile or hazardous materials
-
Space-saving design, requiring 50-75% less square-footage than a freight elevator
-
Approximately 25-year base lifespan, and can be modernized with ease
Learn more at Matot.com or sign up for a lunch and learn presentation of our AIA-approved continuing education course, Vertical Material Handling Systems & Methods.
Dumbwaiters
Inteli-Lift CPLD 125 and 250 Lb Dumbwaiter Systems
A commercial Dumbwaiter or a large residential dumbwaiter from Elevation Innovation are the only fully (ETL) certified commercial dumbwaiters in the world file # 5020834. They incorporate technology for ease of installation, usage, and maintenance. The controller has a series of LED lights indicating the current position of the dumbwaiter and any doors open or safeties that are active. A commercial dumbwaiter built for the abuse of heavy use. A commercial dumbwaiter that can serve up to nine floors. The CPLD control system uses momentary push buttons available in two styles and is good for up to nine floors. Our systems have the longest warranty in the industry, 5 year residential and 3 year commercial.
The standard CPLD controls have an “In Use” light and “Car Here” indicator LED with optional arrival buzzer.
Standard Features:
-
Intelligent Commercial Dumbwaiter controller with LED indicators
-
VFD variable frequency drive gives complete motor control and protection
-
Soft start and soft stop
-
Call / sends with momentary push button controls
-
In use LED with car here indicators
-
Arrival buzzer is optional and standard on all food service systems
-
Stainless steel or Mild steel one piece cab Custom aluminum rail system
-
125 Lb. & 250 Lb. residential dumbwaiter cabs available in 3/4″ Russian Birch
-
Maintenance free 3 phase Bauer motor/gear assembly made in Germany
-
Safety devices: slack cable, final top / lower limit and a type A safety brake
-
Interlock door safety devices UL Certified
-
125 or 250 Lb capacity (Fully UL Certified)
-
30 fpm rated commercial dumbwaiter speed (50 fpm available)
-
Economical, reliable cable drive
-
Travel up to 75 feet and 9 stops
-
115V or 230V Commercial Dumbwaiter operation 1 phase or 3 phase 50/60 Hz.
-
Roll up or bi-parting gate systems
-
50 Db motor sound rating – same as a refrigerator only in an enclosed shaft
-
Additional car here LED for food service – position anywhere to alert servers
-
Select-able do not interrupt timer, select from 0 – 80 seconds
Hide-A-Waiter
-
Rack & pinion drive
-
No slack cable lock-ups
-
Battery operated
-
Fast and easy installation – plug & play
-
Aluminum rail instead of steel T-rail
-
No separate machine room required
-
No remote mounted controller
-
On board diagnostic troubleshooting LED light
-
20” Wide x 20” Deep x 30” High – 200 lbs capacity
-
24” Wide x 24” Deep x 30” High – 200 lbs capacity
-
30” Wide x 30” Deep x 36” High – 275 lbs capacity
-
Warranty 5 years on motor & gear, and 2 years on all other parts
-

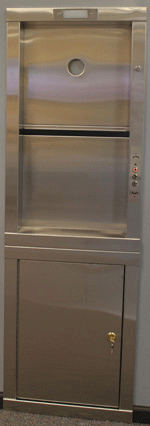

Optional stainless steel cabin.
