WHEELCHAIR LIFTS
Vertical Platform Lifts
Genesis Enclosure
Genesis Enclosure Model
The Genesis Enclosure Model is a vertical platform wheelchair lift that can provide access to up to 4343mm (171"). This style of vertical lift is an easy and cost-effective accessibility solution for public buildings or private residences and is suitable for indoor or outdoor installations. The Genesis Enclosure has a lifting capacity of 340 kg (750lbs). The components of this Genesis Vertical Platform lift consist of a factory manufactured enclosure walls, with integrated doors and gates, a drive mast, passenger platform and easy to use call stations and platform controls. The Genesis can be customized with a variety of optional features to suit the needs of the user and building owner. The wall panels, doors and gates can be designed from an extensive variety of colors and finishes.
Main advantages
-
Modular
-
No shaft construction
-
No exposed fasteners
-
Aluminum enclosure
-
Tactile and illuminated controls
-
Easy grip offset "D" handles
Genesis Shaftway
The Genesis Shaftway model is a vertical platform wheelchair lift.This style lift has a capacity or 340 kg (750lbs.) and can provide access up to 4343mm (171"). The Shaftway model is designed to fit the lift components within a shaftway built by other to Garaventa Lift specifications. The Shaftway Model can be designed to blend and compliment the building design at a fraction of the cost of an elevator.
The components of the Shaftway Models consist of a drive mast, passenger platform, doors/gates, call stations and platform controls.
The Genesis Shaftway Model suitable for commercial or residential projects and can be installed indoors or outdoors.
Main advantages
-
Low Cost
-
ADA Compliant
-
Blends in with any decor
-
Tactile and illuminated controls
Genesis Shaftway
BRUNO VPL-3100 and VPL-3200B
.jpg)
BRUNO VPL-3100 and VPL-3200B
Sometimes called a porch lift, Bruno’s rugged and reliable wheelchair lift provides efficient access to a raised deck, porch, or even floor to floor access inside your home. The lift can handle virtually any power wheelchair or scooter and occupant. An affordable solution for individuals and caregivers who need assisted access to a porch. Features include:
-
All-weather protected controls and switches
-
Keyed, constant pressure controls on platform with emergency stop switch
-
750 lb. lifting capacity
-
36″ x 48″ non-skid platform
-
Automatic folding ramp
-
42″ high, solid, side platform walls
-
Weather-resistant, powder-coated finish
-
Bottom of platform shuts down if obstruction occurs
Multilift Enclosure Vertical Platform Lift
-
Fully enclosed lift for residential or commercial* 2-stop access with travel up to 72" (for more stops and higher travel, see V-1504 enclosure)
-
Reliable ACME screw drive system with nominal speed of 8 ft/min; no machine room needed
-
Same-side, straight-through and 90° entry/exit configurations available; choose from 3 platform sizes
-
Enclosure can be configured with aluminum, acrylic or glass inserts; doors and gates available with inserts; optional domed, ventilated roof
-
Operates by constant pressure controls; 750 lb capacity
-
Suitable for indoor and outdoor use; also available without enclosure and as a mobile unit
*Not available for commercial use in Ontario
Multilift Unenclosed Vertical Platform Lift
-
Durable wheelchair lift for commercial* or residential access, available in multiple entry/exit configurations and platform sizes
-
Reliable, easily installed ACME screw drive lift carries a wheelchair and passenger between 2 stops, up to 72" (for more stops and higher travel, see V-1504 VPL)
-
Nominal speed of 8 ft/min; operated by constant pressure controls
-
Gate available with aluminum, acrylic or glass inserts, and with automatic opener
-
Drive system housed in tower, so no machine room required; 750 lb capacity
-
Suitable for indoor or outdoor use; also available with enclosure and as a mobile unit
*Not available for commercial use in Ontario

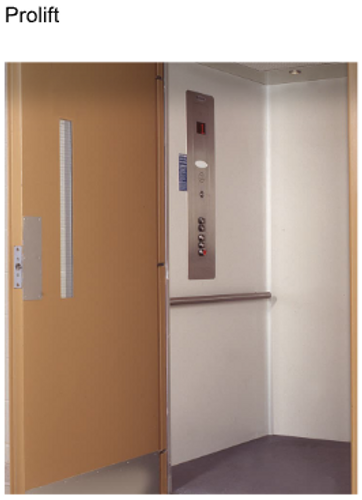

Prolift Vertical Platform Lift
-
Enclosed cab interior - feels like a traditional elevator
-
Services up to 4 stops over a maximum travel distance of 23' (14' in USA)
-
Our fastest VPL with speed of 30 ft/min; hydraulic drive system, requires machine room
-
Constant pressure controls; for fully-automatic commercial access, see the Orion elevator
-
For indoor commercial or residential use, up to 1050 lb capacity; 1400 lb capacity HD model available
-
Cab available in a wide selection of finishes, and in multiple sizes and entry/exit configurations; casket lift option
Outdoor
Features
Butler Mobility Vertical Platform Lifts are equipped with an automatically folding end ramp and guard that locks firmly in place during operation. In a power failure, an emergency hand crank transports the wheel chair lift smoothly and safely to the lower level.
-
Ergonomic wireless controls
-
750 lb capacity
-
8 feet/minute lift speed
-
Direct Geared Belt Drive
-
Non-load bearing back-up safety nut
-
Low maintenance
-
Pre wire-plug 110/15A wall outlet.
-
Emergency manual operation.
-
Control box accessible from carriage.
-
U.L. and C.S.A. Certified
-
Non-skid platform surface for increased safety.
