Commercial Material Lifts
Material Lifts
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Simplified Installation
The modular design on the PM Series simplifies the installation process and greatly reduces the installation time and cost.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Fully Enclosed
The PM Modular Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Factory Pre-Wire Feature
The unit will come fully wired and factory tested before leaving our manufacturing facility. This will eliminate wiring errors during installation and drastically reduce installation time.
* available for 2 or 3 stop units only

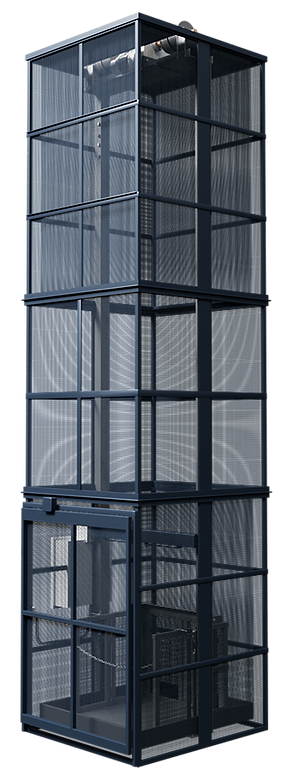

PM Series
Vertical Reciprocating Conveyor
The Pallet Master (PM Series) from CIP Lifts is the industry standard for getting up to 5,000 pounds of material up multiple levels. With a total travel height of 32 feet and a carriage size large enough to accommodate loaded pallets, this modular and easy-to-install VRC is the ideal solution for growing warehouses, factories, and distribution centers.
Quick Installation
This modular lift can be installed in as few as 2-3 days.
Optimizes Floor Space
With a travel height of up to 32 feet and multiple stops, you can fully maximize all your unused vertical space.
Improves Safety
VRCs eliminate the need to carry heavy and bulky items upstairs and reduce clutter to reduce workplace hazards.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Warehouses, Retail Stores, Garages
VRC Specifications
Lift Capacity
5,000 lbs
Carriage Size
4', 5', 6' width or depth
Travel Height
32 ft (max)
Travel Speed
21 FPM (standard)
Load Configuration
C, Z, or Pass Through
Electrical
230V /3P, 460V/3P, or 230V/IP
Gates
Double Swing (ANSI/ASME B20.1 Safety Standards)
.png)
PMB (Bolt Together) Series
Vertical Reciprocating Conveyor
The Pallet Master Bolt Together (PMB Series) from CIP Lifts is the industry standard for getting up to 3,000 pounds of material to multiple levels. With a total travel height of 25 feet (up to 20 feet is pass-through configuration) and a carriage size large enough to accommodate loaded pallets, this modular and easy-to-install VRC is the ideal solution for growing warehouses, factories, and distribution centers.
Quick Installation
This modular lift can be installed in as few as 2-3 days.
Optimizes Floor Space
With a travel height of up to 25 feet and multiple stops, you can fully maximize all your unused vertical space.
Improves Safety
Material Lifts eliminate the need to carry heavy and bulky items up stairs and reduce clutter to reduce workplace hazards.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Warehouses, Retail Stores, Garages
VRC Specifications
Lift Capacity
3,000 lbs
Carriage Size
4', 5', 6' width or depth
Travel Height
25 ft (max)
Travel Speed
21 FPM (standard)
Load Configuration
C, Z, or Pass Through
Electrical
230V /3P, 460V/3P, or 230V/IP
Gates
Double Swing (ANSI/ASME B20.1 Safety Standard
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Simplified Installation
The modular design on the PM Series simplifies the installation process and greatly reduces the installation time and cost.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Fully Enclosed
The PM Modular Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Factory Pre-Wire Feature
The unit will come fully wired and factory tested before leaving our manufacturing facility. This will eliminate wiring errors during installation and drastically reduce installation time.
* available for 2 or 3 stop units only
PMX Series
Vertical Reciprocating Conveyor
The Pallet Master X (PMX Series) from CIP Lifts is the industry standard for getting up to 3,000 pounds of material to a second or third level. With a total travel height of 25 feet (up to 20 feet is pass-through configuration) and a carriage size large enough to accommodate loaded pallets, this modular and easy-to-install VRC is the ideal solution for growing warehouses, factories, and distribution centers.
Quick Installation
This modular lift can be installed in as few as 2-3 days.
Optimizes Floor Space
With a travel height of up to 25 feet and multiple stops, you can fully maximize all your unused vertical space.
Improves Safety
Material Lifts eliminate the need to carry heavy and bulky items up stairs and reduce clutter to reduce workplace hazards.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Warehouses, Retail Stores, Garages
VRC Specifications
Lift Capacity
3,000 lbs
Carriage Size
6'x8' or 8'x6'
Travel Height
25 ft (max)
Travel Speed
21 FPM (standard)
Load Configuration
C, Z, or Pass Through
Electrical
230V /3P, 460V/3P, or 230V/IP
Gates
Double Swing (ANSI/ASME B20.1 Safety Standards)
.png)
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Simplified Installation
The modular design on the PM Series simplifies the installation process and greatly reduces the installation time and cost.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Fully Enclosed
The PM Modular Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Factory Pre-Wire Feature
The unit will come fully wired and factory tested before leaving our manufacturing facility. This will eliminate wiring errors during installation and drastically reduce installation time.

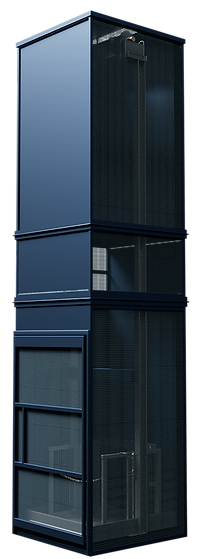

TL-M Series
Box Lift
The TL-M Series VRC (also known as a box lift) is ideal for lighter, more compact loads. This modular Vertical Reciprocating Conveyor is highly versatile and is the easiest-to-use in its class. It features a 3’ x 3’ carriage with a lifting capacity of 500 pounds and has a travel height of up to 16 feet.
Ideal for Smaller, Light Loads
Ideal for boxes, carts, barrels, tires, parts, etc. Can be used a “dumbwaiter” for both food and laundry/clothing.
Quick Installation
This modular lift can be installed in as little as one day.
Optimizes Floor Space
With a travel height of up to 16 feet and 2 stop capacity, you can fully maximize all your unused vertical space.
Improves Safety
VRCs eliminate the need to carry heavy and bulky items upstairs and reduce clutter to reduce workplace hazards.
Common Applications
Lighter/Compact Loads (boxes, tires, and parts) Restaurants
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Simplified Installation
The modular design on the PM Series simplifies the installation process and greatly reduces the installation time and cost.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Fully Enclosed
The PM Modular Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Factory Pre-Wire Feature
The unit will come fully wired and factory tested before leaving our manufacturing facility. This will eliminate wiring errors during installation and drastically reduce installation time.
S Series
VRC Straddle Lift
The S-Series (Straddle Lift) is our most versatile lift across a wide variety of industries and applications. The straddle design is robust, reliable, and affordable. It features a carriage size of up to 12’w x 10’d, can travel up to 32 feet, and lifts up to 5,000 pounds.
Cost Efficient
The minimal enclosure delivers increased cost efficiency with a low lift-to-dollar investment.
Easily handles any material load sizes
Loading and unloading and carriage size accommodates a wide variety of load sizes.
Improves Safety
VRCs eliminate the need to carry heavy and bulky items upstairs and reduce clutter to reduce workplace hazards.
Optimizes Floor Space
With a travel height of up to 40 feet and multiple stops, you can fully maximize all your unused vertical space.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Warehouses, Self Storage, Manufacturing, Distribution, Automotive
Lift Capacity
5,000 lbs
Carriage Size
Up to 12'w x 10'd
Travel Height
32 ft (max)
Travel Speed
19 - 21 FPM (standard)
Cycles
Million+ (standard)
Load Configuration
C, Z, or Pass Through
Electrical
230V/3P, 230V/1P, 460V/3P, or 380V/3PH for overseas applications
Gates
Double Swing (ANSI/ASME B20.1 Safety Standards)
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Simplified Installation
The modular design on the PM Series simplifies the installation process and greatly reduces the installation time and cost.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Fully Enclosed
The PM Modular Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Factory Pre-Wire Feature
The unit will come fully wired and factory tested before leaving our manufacturing facility. This will eliminate wiring errors during installation and drastically reduce installation time.
FP Series
Four Post Vertical Reciprocating Conveyor
The FP VRC (Four Post) is our powerhouse lift, able to lift oversized and heavy loads. Although listed with a lift capacity of 30,000 pounds, these can be customized to accommodate even heavier if necessary. Our four-post design can be customized for even heavier items. If you need to move cars in your automotive dealership, this is the lift for you. Carriage size is a minimum of 7′ x 7′.
Strong and Versatile
Min 7' x 7' carriage size, with "C", "Z", 90 degree and pass-through configuration. Standard lift capacity up to 30,000 pounds.
Optimizes Floor Space
With a travel height of up to 36 feet and multiple stops, you can fully maximize all your unused vertical space.
Improves Safety
Material Lifts eliminate the need to carry heavy and bulky items up stairs and reduce clutter to reduce workplace hazards.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Dealerships, Warehouses, Distribution Centers, Airports
VRC Specifications
Lift Capacity
Up to 30,000 lbs
Carriage Size
Min. 7' x 7'
Travel Height
36 ft (max)
Travel Speed
19 - 21 FPM (standard)
Load Configuration
C, Z, Pass Through, or 90°
Electrical
230V/3P or 460V/3P
Gates
Double Swing (ANSI/ASME B20.1 Safety Standards)
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Fully Enclosed
The FP Series incorporates safety enclosures and guarding on all sides. This ensures continued operator and bystander safety.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
C Series
VRC Cantilever Lift
The C-Series (Cantilever Lift) is perfect for a variety of load sizes and weights in environments with limited overhead space. This one-sided lifting design with a side-mounted motor, delivers the strength and stability to effortlessly move your items between levels. It is versatile, with 3 types of load and unloading configurations and can lift up to 5,000 pounds with a travel height up to 30 feet.
Side-Mounted, Cantilever Design
Ideal for warehouses, distribution centers or factories were there is limited overhead space between stops.
Optimizes Floor Space
With a travel height of up to 30 feet and multiple stops, you can fully maximize all your unused vertical space.
Improves Safety
Material Lifts eliminate the need to carry heavy and bulky items up stairs and reduce clutter to reduce workplace hazards.
Exceptional Reliability
Rugged cyclo-gear motor and helical gearbox are built to last.
Common Applications
Dealerships, Warehouses, Distribution Centers, Airports
VRC Specifications
Lift Capacity
5,000 lbs (standard)
Carriage Size
Up to 8'w x 7'd
Travel Height
30 ft (max)
Travel Speed
19 - 21 FPM (standard)
Load Configuration
C, Z, Pass Through, or 90°
Electrical
230V/3P, 460V/3P, or 230V/1P
Gates
Double Swing (ANSI/ASME B20.1 Safety Standards)
Key Benefits
Illuminated Operator Stations
Push button stations are equipped with lighted buttons, providing the operator valuable information on lift status such as platform position and gate open/closed status.
Quiet and Efficient Operation
The electric brake motor provides smooth and efficient operation. Our motors drive through a unique and patented gearbox system for high efficiency.
Fully Enclosed Optional
The C Series incorporates safety enclosures and guarding on all sides needed. Minimum required enclosures as per ASME B20.1 available too.
Full-Height Carriage Enclosures
The side panels of the lift carriage extend to the full load height, further securing and protecting your load during operation.
Exceptional Safety Standards
We utilize the best components and materials available, allowing our lifts to meet and often exceed the ANSI/ASME B20.1 Safety Standard. Click Here to learn more.
Material handling lifts
Our material handling lifts offer you an efficient and affordable solution for transporting heavy goods between floors in your commercial building. Material handling lifts, a.k.a. freight lifts, industrial lifts, conveyor lifts, or mezzanine lifts, will ease logistics and improve your workflow. Specifically designed to transport heavy goods and merchandise, material handling lifts also make the work environment safer for your employees.
Conveyor lifts to improve your workflow
Material handling lifts are also called Vertical Reciprocating Conveyors (VRC) because they convey goods, materials and other heavy items between floors by the simple push of a button. This is a much safer way of handling goods for your employees than carrying it by hand. It also saves a lot of time for your staff, which results in a better workflow. Material handling lifts are ideal for industrial buildings, warehouses and retail stores but also for establishments such as funeral homes.
Discover our range of conveyor lifts
We offer conveyor lifts for materials and goods in 3 different models to match the specific needs of your commercial building:
Benefits of material handling lifts.
Our lifts for handling goods and materials come with many benefits:
-
Less expensive to install and maintain than conventional elevators.
-
Easier to install in new and existing buildings than conventional elevators.
-
Require fewer building adaptations than conventional elevators.
-
Improve employee safety and workflow by efficient material handling.
-

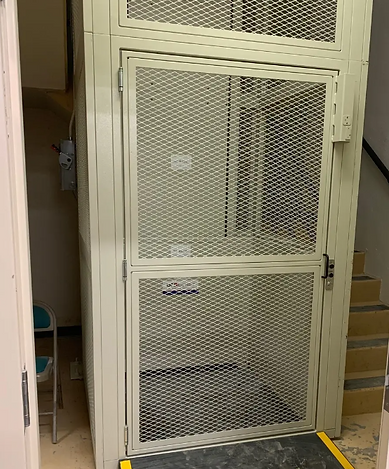

Up to 5 stops and a rated load of up to 1000 lbs.
-
Can be customized to the specific requirements of your building.
Made in the USA : The VRCs are 100% made in the USA
Custom design : Individually engineered to meet your requirements
Safety options : This lift is equipped with several safety options to make its use completely safe.
M-1504 Material Lift
-
Commercial freight lift ideal for restaurants, retail stores and small industrial businesses
-
Carries freight up to 1000 lb; travels up to 23 feet with 4 stops
-
Durable 60" or 80" stainless steel 5WL side guards, and diamond plate aluminum flooring
-
Flexible platform sizes from 24" x 33" up to 48" x 60"
-
Reliable hydraulic drive houses in support tower; no machine room required
-
Intended for use inside a shaftway
The nuts and bolts
Features
Built for durability: 60" or 80" 5WL stainless steel side guards and diamond plate aluminum flooring.
Installation: No machine room required.
Standard features: Continuous-pressure call/send stations at landings, emergency stop and door lock trigger button on platform, continuous-pressure operating control buttons on platform, automatic battery recharging system (115 VAC), remote manual lowering device.
Other standard features: Low-voltage controls, limit switches.
Standard finish: Grey electrostatic powder coat paint on frame and tower.
Safety features: Bottom and top landing door, door locks, safety brake, emergency stop button, manual lowering and battery lowering system in case of power failure.
Warranty: 36 months parts. Please see complete details here.
Options
Cab sizes:
36'' x 54'' (914 mm x 1371 mm).
42'' x 60'' (1067 mm x 1524 mm).
48'' x 60'' (1219 mm x 1524 mm).
Custom cab sizes from 24" x 46" (609 mm x 1168 mm) up to 48" x 60" (1219 mm x 1524 mm).
Cab walls (height): Standard 60'' (1524 mm), optional 80'' (2031 mm).
Cab access: Enter/exit same side (platform Type 1L and 1R), front/rear access (platform Type 2).
Landing entrances: Fire-rated ProDoor.
Other options: Fixed access ramp, outdoor package, 24V battery backup, remote controller/pump box, automatic operation (code permitting).
Specifications
Applications: Commercial, indoor.
Load capacity: 1000 lb (455 kg).
Maximum travel: 23 ft (7 m) for B20.1, and 200" (5080 mm) for A17.1 code.
Travel speed: 18 ft/min (0.09 m/s).
Noise level: 72.9 dBA (up direction); 50.0 dBA (down direction).
Daily cycle: Normal 30, heavy 75, excessive 100. 12 maximum starts in 1 hour on standard installation.
Levels serviced: 2 (standard); 3, 4 (B20.1 code only).
Power supply: 120 VAC, 30 A, 60 Hz, single phase.
Motor/drive: 2:1 chain hydraulic, 3 HP, gear-type motor for 110V.
Pit depth requirement: 3" (76.2 mm); 8" (203.2 mm) with habitable space underneath.
Documents
