COMMERCIAL PRODUCTS

Commercial Wheelchair Lifts

Commercial Vertical Platform Lifts

Genesis Enclosure Model

The Genesis Enclosure Model is a vertical platform wheelchair lift that can provide access to up to 4343mm (171"). This style of vertical lift is an easy and cost-effective accessibility solution for public buildings or private residences and is suitable for indoor or outdoor installations. The Genesis Enclosure has a lifting capacity of 340 kg (750lbs). The components of this Genesis Vertical Platform lift consist of a factory manufactured enclosure walls, with integrated doors and gates, a drive mast, passenger platform and easy to use call stations and platform controls. The Genesis can be customized with a variety of optional features to suit the needs of the user and building owner. The wall panels, doors and gates can be designed from an extensive variety of colors and finishes.

Main advantages

  • Modular

  • No shaft construction

  • No exposed fasteners

  • Aluminum enclosure

  • Tactile and illuminated controls

  • Easy grip offset "D" handles

More information can be found in the Downloads

Genesis Shaftway Model

The Genesis Shaftway model is a vertical platform wheelchair lift.This style lift has a capacity or 340 kg (750lbs.) and can provide access up to 4343mm (171"). The Shaftway model is designed to fit the lift components within a shaftway built by other to Garaventa Lift specifications. The Shaftway Model can be designed to blend and compliment the building design at a fraction of the cost of an elevator.

The components of the Shaftway Models consist of a drive mast, passenger platform, doors/gates, call stations and platform controls.

The Genesis Shaftway Model suitable for commercial or residential projects and can be installed indoors or outdoors.

Main advantages

  • Low Cost

  • ADA Compliant

  • Blends in with any decor

  • Tactile and illuminated controls

Elvoron CPL vertical platform lift

The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less. The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings.

Simple constant pressure operation and swing door access ensure reliability and ease of operation for passengers.

​

Highlights:

  • Low cost

  • Reliable

  • Variety of Finishes

  • Custom Platform Sizes

  • Smooth and Quiet Ride

  • Full Height Cab

Genesis OPAL - Unenclosed short rise Vertical Platform Lift

The Genesis OPAL vertical lift easily transports passengers up and down short vertical distances, for applications such as stages and porches. The platform walls, platform gate and optional automatic folding ramp travel with the platform creating a safety barrier around the passenger.

​

The OPAL has a weight capacity of 340kg (750lbs) and can provide access up to 1600mm (63"). Ideal for indoor and outdoor applications while providing a cost-effective accessibility solution

​

Highlights:

  • Low cost

  • Fast installation

  • Under Platform Obstruction Sensing

  • Ideal for Stage Access

  • Easy grip offset "D" handles

V-1504
Vertical Platform Lift

  • Swift 20 ft/min hydraulic lift to carry a wheelchair and passenger up to 4 stops over 23' of travel (code permitting)

  • Often configured for use in a shaftway

  • Array of optional paint colors; gates available with aluminum, acrylic or glass inserts, and with automatic opener

  • ADA-compliant or custom platform sizes; same-side, straight-through or 90º entry and exit

  • Drive system is located in tower so no machine room needed; operated by constant pressure controls

  • For residential or commercial access; 750 lb capacity

  • Suitable for indoor or outdoor use; also available with enclosure and luxury glass models

V-1504 Prestige
Vertical Platform Lift

  • Luxury lift built from half-inch structural tempered glass with no visible frame for indoor commercial or residential projects

  • Carries a wheelchair and passenger between 2 stops, up to 6' of travel; 750 lb capacity

  • Framed version available for 3 stops and up to 12' of travel

  • Doors and gates available; optional paint colors available for tower and platform

  • 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed

  • ADA-Compliant or custom platform sizes; same-side, straight-through or 90º entry and exit

  • See V-1504 Lux for an enclosed glass lift serving up to 4 stops and up to 23' of travel

Multilift Unenclosed
Vertical Platform Lift

  • Durable wheelchair lift for commercial* or residential access, available in multiple entry/exit configurations and platform sizes

  • Reliable, easily installed ACME screw drive lift carries a wheelchair and passenger between 2 stops, up to 72" (for more stops and higher travel, see V-1504 VPL)

  • Nominal speed of 8 ft/min; operated by constant pressure controls

  • Gate available with aluminum, acrylic or glass inserts, and with automatic opener

  • Drive system housed in tower, so no machine room required; 750 lb capacity

  • Suitable for indoor or outdoor use; also available with enclosure and as a mobile unit

*Not available for commercial use in Ontario

Prolift
Vertical Platform Lift

  • Enclosed cab interior - feels like a traditional elevator

  • Services up to 4 stops over a maximum travel distance of 23' (14' in USA)

  • Our fastest VPL with speed of 30 ft/min; hydraulic drive system, requires machine room

  • Constant pressure controls; for fully-automatic commercial access, see the Orion elevator

  • For indoor commercial or residential use, up to 1050 lb capacity; 1400 lb capacity HD model available

  • Cab available in a wide selection of finishes, and in multiple sizes and entry/exit configurations; casket lift option

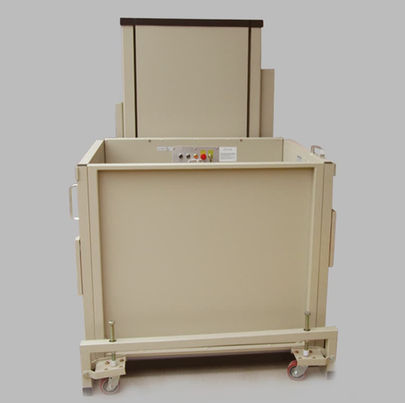

Multilift Mobile
Vertical Platform Lift

  • Reliable ACME screw drive lift for low-rise access: carries a wheelchair and passenger up to 4' of travel between 2 stops

  • Mobile unit provides temporary accessibility; includes 2 manual platform gates and automatic access ramp

  • Operated by constant pressure controls; 750 lb capacity

  • Suitable for residential or commercial* needs

  • For indoor or outdoor use (in moderate climates); also available as a semi-permanent installation with enclosure and without

*Not available for commercial use in Ontario
