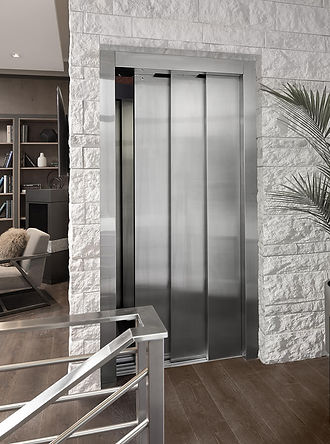

Elvoron Home Elevator MR/HR
Elvoron Home Elevators are designed to be smooth, quiet, and reliable
Customizable with a variety of colors, finishes, and materials to suit any style, budget or project. Compared to traditional manual accordion gates and swinging doors, Premium 3-speed Sliding Doors & Fixtures offer ultimate style, safety, convenience, and quality.
All Garaventa Lift Elevator Control Systems are 100% tested in our factory. We make our own hydraulic cylinders! Each one is pressure tested to our exact standards. Uninterruptible Power Supply allows you to electronically lower the elevator cab in the event of a power outage.
Specifications: Applications: Residential, indoors Standard capacity: 950 lb (431kg), 1000 lb (453 kg) Maximum travel distance: 50' (15.24 m), 60' (18.29 m) where code permits with up to 6 stops and 2 openings Nominal speed: 40 ft/min (0.20 m/s) Motor: 2 hp with geared roller chain and variable frequency drive Minimum pit: 8" (203 mm) recommended, but as shallow as 6" (152 mm) is possible; 10" (254 mm) required for HD model Minimum overhead clearance: 96" (2438 mm) Power supply: 230 volts, single phase, 60 Hz, 20 amps, 30 amp fused disconnect box with 20 amp fuse
