SAVARIA ORION ELEVATOR
Orion LU/LA Elevator
-
Fully automatic elevator with precision hydraulic drive system for a smooth ride
-
Machine room and pit required; capacity 1400 lb
-

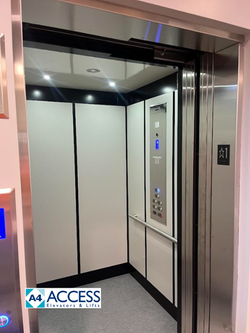

High-rise look and feel: automatic sliding doors and commercial-style cab designs
-
Minimizes construction costs: overhead and pit requirements are much lower than traditional commercial elevators
-
Cost-effective accessibility: meets limited use/limited application (LU/LA) elevator code
-
Ideal for low-rise buildings up to 3 stories such as schools, places of worship and professional buildings
-
Configure for same-side, straight-through or 90º entry and exit
Features: High-rise style, built for low-rise applications: Affordable elevator for low-rise buildings with 1400 lb capacity and automatic door option. Aesthetically appealing: Attractive call station, control panel and digital floor indicators. High-efficiency hydraulic drive system: Smooth ride, start and stop. Variable speed pressure valve: Gradual acceleration and deceleration of cab. Automatic doors: Fire-rated two-speed steel cab doors in black or architectural white, with infrared closing sensors; automatic landing doors are finished with primer. Other standard features: Fully automatic operation, automatic cab on/off interior lighting, digital display in-car operating panel, architectural white ceiling with 4 pot lights, steel interior in choice of architectural white or black. Standard finishes: Standard architectural white steel, stainless steel car operating panel, handrail and silver color trimmed light fixtures. Safety features: Emergency battery back-up for lowering and interior lighting, emergency stop and alarm buttons, emergency manual lowering, safety brakes, overspeed valve. Warranty: 36 months parts.
Documents: Orion LULA Elevator Brochure.pdf Orion LULA Elevator Color Chart.pdf Orion LULA Elevator Owner's Manual.pdf Orion LULA Elevator Planning Guide.pdf
Optional configurations: Type 1, 2, 3, 4 Cab sizes: W48'' x L54'' x H84'' (1219 mm x 1371 mm x 2134 mm), Type 1, 2, 3, 4 W42'' x L60'' x H84'' (1067 mm x 1524 mm x 2134 mm), Type 1, 2, 3, 4 W42'' x L54'' x H84'' (1067 mm x 1371 mm x 2134 mm), Type 1, 2 W51'' x L51'' x H84'' (1295 mm x 1295 mm x 2134 mm), Type 3, 4 Optional cab finishes: Classic cab can be upgraded with fire-rated plastic laminate panel overlays in a variety of colors, or full stainless steel cab. Orion17 cab package: Fire-rated laminate overlay panels in choice of color, framed in stainless steel; stainless steel cab doors and dropped ceiling. Available only in 48" x 54" (1219 mm x 1372 mm) or 42" x 60" (1067 mm x 1524 mm), Type 1 and 2 cab configurations. Optional fixture finishes: Brass Optional landing door finishes: Architectural white, black, custom color, or stainless steel. Package for 2010 Code and Above: Phone line detection, sheave guard and oil tank temperature sensor. Other Options: Up to 6 stops (code permitting), hands-free phone, telephone cabinet with choice of finish, fire recall service, buffer springs. Also available for residential applications, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.
Specifications: Specifications Applications: Commercial (LU/LA), residential (where code permits), indoors. Standard capacity: 1400 lb (635 kg) Maximum travel: 25' (7620 mm), with up to 6 stops (subject to local code requirements); higher travel available where code permits. Nominal speed: 30 ft/min (0.15 m/s) Drive/Motor: 1:2 cable hydraulic drive, 5 hp submersed motor Minimum pit: 14" (355 mm) Minimum overhead clearance: 108" (2743 mm), or 110" (2794 mm) for Orion17 cab; for new build overhead is 134" (3404 mm) per code. Power Supply: 208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz Lighting Supply: 120 Volt, 15 Amps, 60 Hz
