Xpress II - Inclined Platform Lift

XpressII_A4 Access Garaventa Elron Chair Lifts

Xpress II - inclined platform

The Garaventa lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings.

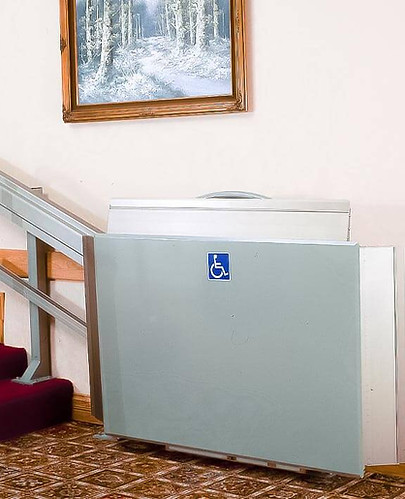

The platform travels on two rails which are secured directly to the wall or to support towers and is propelled by means of a carriage mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway.

​

The Xpress II is cost-effective and is ADA compliant. With a variety of standard and optional features available, it can be designed to suit the needs of the user and building owner.

Highlights:

  • Low cost

  • Space saver

  • ADA access

Garaventa Elvoron A4 Access Wheelchair Lifts

Xpress II - Inclined Platform Lift

Specifications

  • Standard Platform Sizes800mm x 1250mm (31 1/2” x 49 1/4”)
    800mm x 1000mm (31 1/2” x 39 3/8”)
    750mm x 900mm (29 1/2” x 35 1/2”)

  • Optional Platform Sizes675mm x 1000mm (26 1/2” x 39 3/8”)
    725mm x 1000mm (28 1/2” x 39 3/8”)

  • Rated Load250 kg (550 lbs)

  • SpeedUp: 4m (13 ft) per minute
    Down: 4.9 m (16 ft.) per minute

  • Operating ControlsContinuous pressure switches, 24 VDC.

  • Drive System Motor0 . 75 H . P.

  • Power Requirements208-240 VAC, 50/60 HZ single phase on a dedicated
    (North America = 20 amp, International = 15 amp) circuit.

  • Power TransmissionRack & pinion

  • Emergency UseA handwheel is provided. Auxiliary power system available.

  • Rail SystemChampagne anodized aluminum extrusion with integrally mounted zinc plated gear rack.

  • Overspeed SafetyMechanical overspeed sensor and lock, with electrical drive cut-out protection.

  • Xpress Delivery TimeStandardized components allow for fast delivery times.
